THIẾT BỊ LƯU TRỮ DUNG LƯỢNG LỚN
NEXSAN ATABOY2

ATABABY

ATABOY2

ATABOY2X

SATABOY

SATABLADE

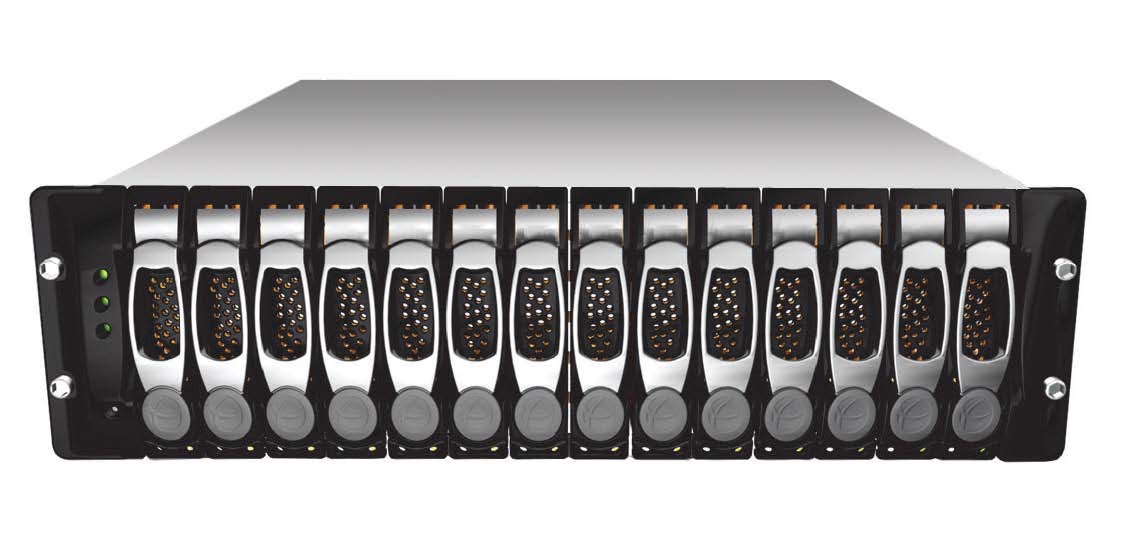

Nexsan ATABoy2 Features and Benefits: The ATAboy2 is the fourth generation of SCSI to ATA RAID products developed by Nexsan Technologies. With Nexsan’s new high density drive packing technology the ATAboy2 ships with 14 disk drives in only 3U. Unlike conventional RAID products the ATAboy2 uses ATA disk drives to store RAID data rather than high cost SCSI or Fibre Channel disks, Nexsan offer the same security of a standard RAID subsystem but at a greatly reduced cost. The unit has dual power supplies, dual high-speed radial blowers and fourteen pluggable disk drives. Conguration of ATAboy is controlled NexScan and is accessed via the 10/100Base-T port on the RAID controller or via the serial port. Continual event monitoring with active user notification. Dynamic spare pooling and dedicated spares; array verification All major components are hot swap supported Tele-Guard™ - Active/Dynamic phone home notification Active array status monitoring; adjustable stripe width; automatic sector re-mapping. Write-back data cache memory bus, 800 Mbytes/sec bandwidth User-settable priorities for dynamic array reconstruct, verify, create and expand operations. Centrally or remotely managed dynamic storage pooling and virtual volume allocations. System security password protected Serial port access All system settings are stored in non-volatile flash memory in case of accidental power loss. Graphic display of enclosure layout including rack and tower orientation Alarm status displayed on the events page directly translated from and associated with the occurrence. Arrays can be configured for RAID levels 0, 1, 1+0, 4 and 5 Up to 16 LUNS per SCSI controller, 32 LUNS per Fibre controller Auto rescan - initiates automatic system scans for real-time "Correct Status" reporting for all RAID arrays and connected disk drives. Parity Scrub / Array Verify scheduling - User defined automatic repair of all configured arrays.

TECH SPECS

1) Physical Specications   Height 132mm [5.16”] 3U   Width 483mm [18.87”]   Depth 521mm [20.35”]   Depth Including power supply handles [537mm 20.98”]   Approximate weight 32Kg (including drives + packaging)   Power Supplies 2 x 450watt load sharing   Cooling 2 x Radial blowers in PSUs and one blower in each controller 2) Communication   Interface 10/100 Base-T Ethernet RJ45   Protocols TCP/IP, HTTP, SNTP and FTP   GUI HTML, supports most standard Internet browsers   Email sent via SMTP in event of failure or warning event 3)Technical Specications Hard disk interface ATA/100 (14 channels) Host Channel interface Ultra 160 SCSI (2 channels) / 1Gb and 2Gb Fibre Controller Single controller, upgradeable to dual, active-active failover, cache corehency Cache 128MB expandable to 512MB Drive bay size 14 bays / 3U Battery backup Yes Raid level 0,1,1+0,4,5 Sustained data rates Up to 170MB/sec per controller LUN supported 16 / 32 per controller SAN ready Yes

PRICE LIST

NEXSAN ATAboy2 Rackmount, SCSI-to-ATA, Single Controller, 14 Bay, 3U, 128MB Cache
Part Number	Mô Tả	Giá (usd)
B1S-0825HABRG	Configured with (8) 250GB Disks / ATA 100 / 7200 RPM	Call
NEXSAN ATAboy2 Options
Part Number	Mô Tả	Giá (usd)
ATA2-120-A	120 GB Disk / ATA 100 / 7200 RPM	Call
ATA2-160-A	160 GB Disk / ATA 100 / 7200 RPM	Call
ATA2-25H-A	250 GB Disk / ATA 100 / 7200 RPM	Call
ATA2-300-A	300 GB Disk / ATA 133 / 7200 RPM	Call
ATA2-400-A	400 GB Disk / ATA 100 / 7200 RPM	Call
CTR-009-128	Second SCSI Controller	Call
(Giá chưa bao gồm 5% VAT)
