 HPE Aruba Instant On AP11D Access Point |
| |
 |
|
| |
|
| |
 |
| |
|
| |

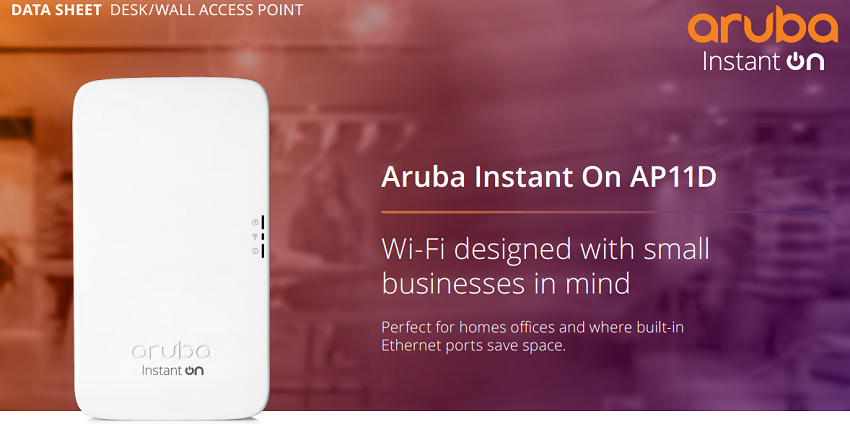

 HPE Aruba Instant On AP11D Access Point Specs
Thiết bị thu phát sóng WiFi - Aruba Instant On AP11D
- Model: AP11D
- Chuyên dụng: Trong nhà
- Chuẩn: 802.11 ac/a/b/g/n – wave 2
- Băng tần, Tốc Độ:
2.4 Ghz tốc độ :300 Mbps;
5 Ghz tốc độ :867 Mbps
- Chế độ: Access Point (AP);
Gateway/firewall
- Anten: 2.4 Ghz :4.3 dBi , 2x2 MIMO;
5 Ghz : 6.2 dBi , 2x2 MU-MIMO
- Cổng mạng: (1) 10/100/1000 Mbps Ethernet Port
- Hỗ trợ VLAN 802.1Q
- Hỗ trợ giới hạn tốc độ truy cập cho từng kết nối
- Hỗ trợ tính năng chuyển vùng
- Power over Ethernet : 802.3af (class 3) hoặc 802.3at (class 4)
- Công suất tiêu thụ tối đa: 9.7W (PoE/DC) hoặc 25.3W PoE PSE (302.3at PoE/DC)
- Phụ kiện: DC power (48V)
- Người dùng đồng thời: 50+
- Cloud controller miễn phí
- HPE Aruba Instant On AP11D Data Sheet
|
| |
Mô hình triển khai điển hình |
| |

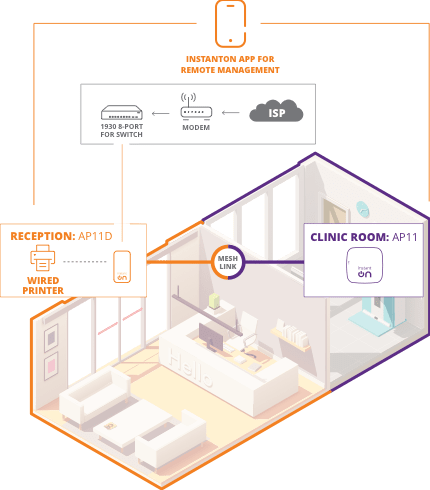

 Small Business |
| |
 |
| |
Light Use: Clinic
When data security is priority one, Aruba Instant On delivers. Set up a guest network and decide if there are apps or site categories you want to block. You can also create multiple networks within your business, separating office admin from POS and billing, for instance, to further secure sensitive information. Know you’re protected with all the security you need—no subscription, licensing fees, or additional equipment needed. |
 |
| |
 |
| |
Heavy Use: Hotel with outdoor courtyard
Even a small hotel has big Wi-Fi needs. Business travelers are on video calls. Families are streaming video to smart TVs in their rooms. Employees are using the reservation system and VOIP phones. Security cameras, POS, thermostats, and smart locks? They’re all connecting too.
Accommodate them all, easily, with Aruba Instant On. Create separate guest and business networks. Enable wireless access to guest tools, such as printers. Enjoy automatic prioritization of video and voice calls. Know you’re automatically protected by the latest security—without added fees or equipment. |
 |
| |
Work from home |
| |
|
| |
Light Use
Send email, browse the internet and share text-based documents and files easily and seamlessly. |
 |
|
|
