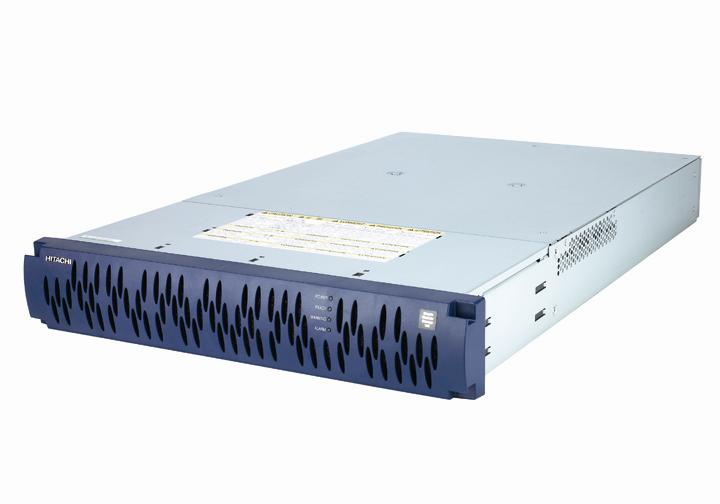

THIẾT BỊ LƯU TRỮ DUNG LƯỢNG LỚN - HITACHI SMS 100

Specifications

Single controller models: two 1Gb/sec Ethernet ports for iSCSI connectivity, 1GB cache memory and support for up to 1,024 logical volumes (LUNs) Dual controller models: four 1Gb/sec Ethernet ports, 2GB of cache memory, support for up to 2,048 LUNs All models: complete data protection, even in the event of any two disk drive failures via either SAS or SATA II HDDs (suitable for any application workload) in RAID-6 (dual parity) format   two easy-to-access repair slots, enabling quick, simple HDD replacement   Hitachi Storage Navigator Modular 2 software for simple GUI-based storage management: installation and configuration, volume provisioning and security, and backup and restore (internal and remote) Available for dual controller models: Hitachi Copy-on-Write Snapshot software for pointin- time data backup and storage of up to 15 copies of each volume Operational Specifications Height: 2”u”, 87mm, 3.425 inches   Width: 482.6mm, 19 inches   Depth: 731.4mm, 28.8 inches   Weight: 30kg, 66.1 lbs (maximum)   Power: 800VA (at power-on and normal state)   Supply: 100-120 volts, 200-240 volts   Noise: 58dcb @ 28cm, 11 inches Unsurpassed Interoperability Hitachi Simple Modular Storage connects to all major servers and operating systems, including: HP-UX, IBM® AIX®, Microsoft Windows 2003 and Microsoft Windows 2008, Microsoft Vista, Microsoft XP, Novell Netware, Red Hat Linux, Red Flag Linux, Suse Linux, Sun Solaris and VMware. Warranty 3 Rack Height (Form Factor) 2U

Capacity/HDD Options
Drive density (raw) and speed model capacity 500GB SATA 7200RPM 750GB SATA 7200RPM 1TB SATA 7200RPM 146GB SAS 15000RPM 300GB SAS 15000RPM 400GB SAS 10000RPM 6 HDD configuration 2TB 3TB 4TB 584GB 1.2TB 1.6TB 3TB 4.5TB 6TB 876GB 1.8TB 2.4TB 8 HDD configuration 12 HDD configuration** 4.5TB 6.75TB 9TB 1.314TB 2.7TB 3.6TB

Software Solution Options

Hitachi Copy-on-Write Snapshot Software An essential component of business continuity is the ability to replicate data quickly. Hitachi Copy-on-Write Snapshot software provides logical snapshot data replication within supported Hitachi storage systems for immediate use in decision support, software testing and development, data backup, and rapid recovery operations. Hitachi TrueCopy Remote Replication Software TrueCopy software provides a storage hardware–based, serverless, synchronous, remote copy solution that replicates data between two Hitachi storage systems for disaster recovery.To determine what distance-replication features are available on your storage platform, contact Hitachi Data Systems. Hitachi ShadowImage In-System Replication Software The high-speed, nondisruptive, local mirroring technology of ShadowImage software rapidly creates multiple full-volume copies or clones of mission-critical information within all Hitachi storage systems while keeping data RAID-protected and fully recoverable— without impacting host service or performance levels. Hitachi HiCommand® Protection Manager Software This disk-to-disk based, rapid backup and recovery software was designed for Microsoft Exchange Server, SQL Server, and NTFS. Protection Manager software integrates ShadowImage,Copy-on- Write, TrueCopy, and Hitachi Universal Replicator software with Microsoft Volume Shadow Copy Service and Virtual Device Interface and achieves rapid yet high-fidelity backup and recovery. Business Continuity Services Hitachi Data Systems Global Solution Services (GSS) offers several business continuity services to support your goal of ensuring continuous access to information across your enterprise. Services include assessing your current disaster recovery capabilities and business needs, analyzing areas of risk for your enterprise, and helping you develop the strategy and technical plans you need to achieve nonstop business operations. Hitachi SplitSecond™ Solutions for Rapid Recovery Built on the foundation of Copy-on-Write Snapshot software, SplitSecond Solutions are designed to accelerate Hitachi storage backup and restore capabilities within complex database applications. Leveraging disk-todisk recovery, SplitSecond Solutions can dramatically reduce application recovery time. Hitachi Universal Replicator Software Universal Replicator software allows Network Storage Controller and Universal Storage Platform models to offer complete business continuity capabilities—even across aggregated storage environments. Storage administrators can configure Application Optimized Storage™ solutions from Hitachi Data Systems to maintain up-to-date copies of data in geographically dispersed locations—which can be readily accessed if one location is disabled.

THIẾT BỊ LƯU TRỮ DUNG LƯỢNG LỚN - HITACHI SMS 100
